Open the Right Headlight, the Right Way
Opening a headlight is not a universal “heat and pry” procedure. Housing materials, sealants, service covers, electronics and fastening methods vary by vehicle. This guide explains how to assess the assembly first, separate a compatible lens carefully, install DRL boards and restore the housing seal without relying on a one-size-fits-all temperature.
Before You Start
Use this article as a planning framework, not as a replacement for the vehicle manufacturer's repair information or the instructions supplied with your DRL boards. Confirm the exact headlight version before ordering parts or applying heat.
Do not heat or force an unfamiliar assembly. Xenon/HID systems can contain high-voltage igniters and ballasts, while adaptive or matrix headlights may require diagnostic calibration after removal. If the correct service procedure, sealant type or safe cable route cannot be confirmed, use a qualified automotive-lighting specialist.
Determine How the Headlight Is Sealed
The original joint determines whether gradual heating can soften the seal or whether the assembly requires a specialist cutting and reconstruction process.
Reheatable sealant
Some headlights use a pliable, butyl-type sealant that softens with controlled heat. These are generally the best candidates for careful lens separation and resealing.
Permanent adhesive
Other assemblies use a hard-setting adhesive often described by installers as “permaseal.” Heat alone may not release it. Cutting the joint can permanently damage the lens channel and is outside this general guide.
Serviceable access
Certain DRL modules can be reached through a rear cover or removable heat-sink module without separating the lens. Always choose the least invasive approved access method.
Do not treat 220°F / 104°C—or any other number—as safe for every headlight. Plastics, coatings, adhesives and internal modules tolerate heat differently. Use a documented vehicle- or headlight-specific procedure. If none is available, do not guess.
Confirm these points before disassembly
- The DRL board is correct for the exact vehicle, model year and headlight version.
- The headlight actually needs to be opened; no approved rear service route is available.
- The lens and housing have no cracks, broken tabs or previous seal repairs.
- The sealant type and an appropriate replacement sealant have been identified.
- Any aiming, coding or calibration requirements are known before the lamp is removed.
- A replacement headlight is available or affordable if the original assembly is damaged.
Tools and Materials
The exact tool list depends on the vehicle and headlight. Use clean, non-marring tools and keep all replacement sealing materials ready before opening the assembly.
- Vehicle repair information
- Correct screwdrivers, bits and sockets
- Plastic trim and lens-separation tools
- Controlled heat source and thermometer
- Heat-resistant gloves and eye protection
- Lint-free cloths and suitable cleaner
- Headlight-compatible replacement sealant
- Masking tape, labels and parts trays
- Electrical test equipment
- Optional sealed cable gland or grommet
If a heated enclosure is specified, use equipment dedicated to workshop parts. Do not place a headlight in an appliance that will later be used to prepare food. Never use an open flame, and never rest the housing directly against a heating element or hot metal.
Open, Modify and Close the Headlight
Work on one headlight at a time and photograph every connector, fastener, seal and cable position before changing it. The images below are placeholders for model-specific photos.
-
Remove the Headlight Safely
Park on a level surface, switch off the ignition and follow the vehicle manufacturer's battery-disconnection procedure. Removal may require bumper, grille or wheel-liner components to be released first. Support the lamp while disconnecting plugs; never pull on the wiring.
- Record the original beam pattern or adjustment reference before removal.
- Protect painted panels and the lens from tools and loose fasteners.
- For Xenon/HID or adaptive systems, follow all OEM discharge and service precautions.

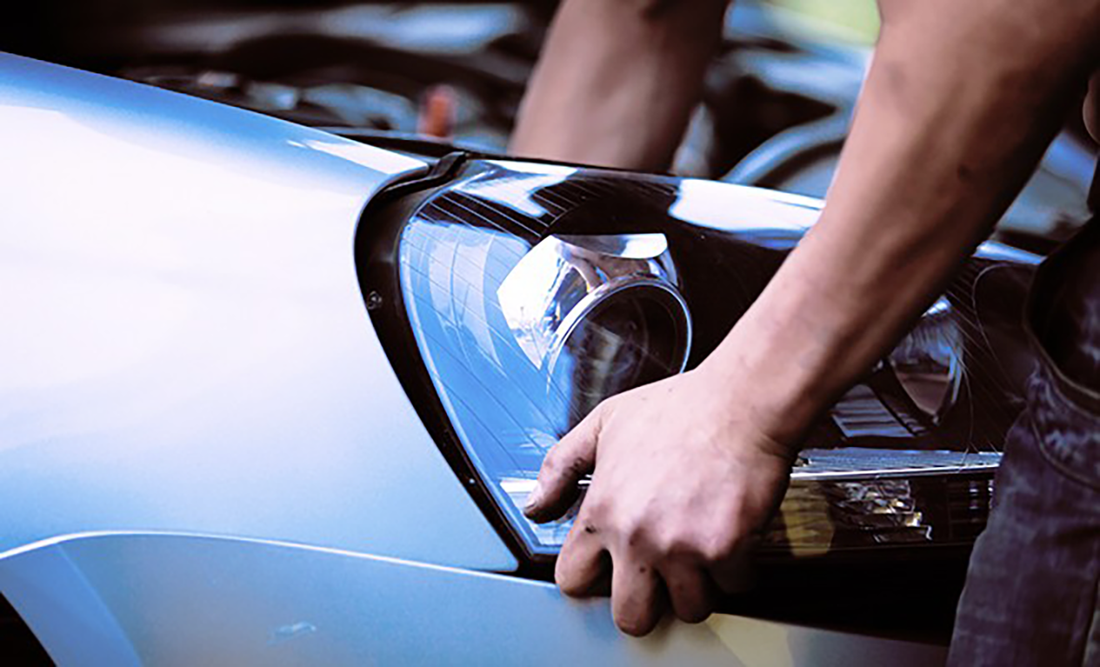

Carefully support the headlight during removal and disconnect the electrical connectors without pulling on the wiring. -
Strip the Assembly to a Heat-Safe State
On a clean bench, remove every external screw, retaining clip and bracket that crosses the lens-to-housing joint. Remove service caps and any bulbs, ballasts, control units, desiccant elements or electronics that the manufacturer says must not be heated.
- Label left/right parts and store fasteners by location.
- Check carefully for hidden screws beneath seals, trim pieces or labels.
- Do not disturb aiming adjusters or projector mounts unless the service procedure requires it.
Remove all perimeter screws, retaining clips, rear covers and heat-sensitive modules specified by the vehicle or headlight manufacturer. -
Soften Only a Confirmed Reheatable Seal
Follow the documented procedure for the exact assembly and heat the perimeter gradually and evenly. Monitor the housing continuously. The objective is to soften the joint—not to make the plastic hot enough to deform, discolor or release internal coatings.
- Use short, controlled heating cycles and reassess the seal between cycles.
- With a heat gun, keep it moving and concentrate on the channel rather than the lens face.
- Stop immediately if the housing warps, gloss changes, odor becomes unusual or the joint remains rigid.
Heat is not the test for permanent adhesiveRepeatedly increasing temperature will not safely convert a permanent adhesive into a reheatable seal. If the joint does not respond as expected, stop and re-identify the construction before continuing.
Apply controlled heat gradually along a confirmed reheatable seal while monitoring the housing to prevent damage or deformation. -
Separate the Lens Incrementally
Release the retaining tabs without over-bending them. Begin at the strongest accessible area of the channel and work around the perimeter a little at a time with non-marring tools. Reheat the next short section when the seal starts to resist.
- Do not lever against thin cosmetic edges, vents or locating tabs.
- Keep the lens and housing aligned; twisting can crack corners or distort the channel.
- Keep stretched sealant away from reflector and projector surfaces.
Release the retaining tabs and separate the lens incrementally with non-marring tools, reheating short sections whenever the seal begins to resist. -
Protect the Optics and Remove the Factory DRL Boards
Place the open assembly in a clean, low-dust area and cover exposed optical surfaces. Do not touch reflector coatings, projector lenses or the inside of the outer lens unless the manufacturer specifies an approved cleaning method; these surfaces can mark easily.
Factory DRL boards may be screwed down, bonded with thermal adhesive, or both. Remove every retaining screw before attempting to lift a board. If thermal adhesive is present, warm the rear of the metal heat sink gently with a heat gun, then work the board free with a small flat tool without gouging the mounting surface.
- Remove all old thermal-adhesive residue from the metal mounting area.
- Clean only the metal contact surface with a lint-free cloth and suitable isopropyl alcohol.
- Allow the surface to dry fully and install the new thermal interface exactly as supplied.
- Do not reuse damaged screws, stripped threads or contaminated thermal material.
Remove all retaining screws before carefully lifting the thermally bonded DRL board from the heat sink without damaging its metal mounting surface. -
Install and Bench-Test the New Boards
Fit the DRL boards in their correct orientation, reconnect the original plugs and secure the heat-sink modules to their original positions. Observe any board-specific polarity, thermal-interface and tightening instructions.
- Verify that no connector is offset, partially latched or under cable tension.
- Test all intended white and RGB+W functions before resealing the lens.
- Switch off and isolate power again before continuing.
Vehicle messages cannot be ruled out universallyA warning-free result depends on the vehicle, headlight electronics and the exact board version. Do not promise “no dashboard error” unless compatibility has been validated for that specific configuration.
Test the installed RGB+W boards and all intended lighting functions before resealing the headlight. -
Plan Any RGB+W Cable Exit
Before closing the housing, choose the least invasive cable route that preserves the headlight's seal, drainage and pressure-equalization vents. Depending on the model, the flat board cable may pass beneath a module sealing ring, through an existing service or dust-cap route, or through a new sealed pass-through.
The three routing methods and their checks are explained in the RGB+W cable-routing section below.
Where the headlight design permits, route the flat RGB+W cable beneath the module sealing ring and seat the heat sink without folding or crushing the cable. -
Prepare the Channel and Reseal the Lens
Remove loose, contaminated or displaced sealant without cutting into the channel. Use only a headlight-compatible replacement sealant that matches the joint design. Apply a continuous, even seal with no gaps, especially at corners and cable-adjacent areas.
- Keep sealant out of vents, drains, screw holes and electrical connectors.
- Align the lens before pressing it into the channel; do not force one corner in first.
- If reheating is specified, use the same controlled, assembly-specific approach.
- Engage clips and tighten perimeter screws evenly to the specified torque.
Apply a continuous layer of compatible headlight sealant and align the lens carefully before pressing it evenly into the housing channel. -
Inspect, Reinstall and Verify
Allow the sealant to settle or cure for the time specified by its manufacturer. Reinstall all caps, modules, gaskets and vents in their original positions, then refit the headlight according to the vehicle procedure.
- Run a complete lighting-function and dashboard-warning check.
- Confirm that wiring is clear of heat, sharp edges, fans, belts and moving suspension parts.
- Verify beam aim and perform any required diagnostic calibration.
- Carry out the conservative moisture checks described later in this guide.
Choose the Correct Cable Route for the Headlight
RGB+W boards require a connection from the internal boards to the external controller. There is no single route that is correct for every headlight. Inspect the assembly and use the option that creates the least risk of cable damage or water entry.
Flat cable beneath a module seal
Where the cable and heat-sink design allow it, lay the flat cable smoothly along the heat sink. If a sealing ring surrounds the module, route the cable flat beneath the ring and return the heat sink to its original location.
A slight increase in resistance while seating the module can occur. Start all screws by hand and tighten them gradually in an even pattern. Stop if the cable folds, shifts, is sharply compressed or the module will not sit evenly.
Existing service or dust-cap route
Some headlights allow the harness to leave through an existing rear access area or a replaceable dust cap. Preserve the cap's original sealing function and provide suitable strain relief. Do not leave a cap loose or route the cable across a sealing lip without a compatible sealed interface.
New sealed pass-through
If no safe existing route is available, a small hole may be required in a suitable non-structural area—preferably a replaceable dust cap where practical. Fit a correctly sized automotive waterproof rubber cable gland or grommet, deburr the opening and seal it with compatible material as required by the component instructions.
Confirm clearance from optics, wiring, modules, drains and structural ribs. Remove all drilling debris from the assembly. Never drill through or obstruct a factory vent, pressure-equalization membrane, drain path or original sealing surface.
Controller and external harness
- Secure the controller in a dry, serviceable position away from exhaust heat and moving parts.
- Provide strain relief so vibration cannot pull on the board connector or sealed pass-through.
- Route power and ground exactly as specified for the supplied controller and vehicle application.
- Use appropriate circuit protection; do not assume one fuse size or power source suits every kit.
- Test cable movement, cap engagement and module seating before the headlight is reinstalled.
This video provides a visual overview of the RGB+W color changes using the mobile app.
Resealing and Final Inspection Checklist
A headlight is normally a vented system, not a vacuum-sealed container. The goal is to restore the designed lens joint, covers, gaskets, drains and ventilation—not to seal over every opening.
Before installation
- Lens sits fully and evenly in the housing channel
- All clips, screws, caps and module seals are installed
- Sealant is continuous with no visible gaps or contamination
- Vents, membranes and drain paths remain open and undamaged
- Cables are protected from sharp bends, pinching and tension
After installation
- All light functions operate on both sides
- No connector, coding or dashboard warnings remain unresolved
- Beam aim and any required calibration are verified
- No water droplets or pooling appear after normal weather exposure
- The housing is rechecked after the first drive and first wash
Inspect the completed assembly visually, then expose it only to normal rain-like water conditions after the sealant's specified cure or settling time. Do not submerge the lamp or direct a pressure washer at joints, rear covers, vents or cable entries. Reinspect the lens joint and pass-throughs afterward.
A fine temporary mist can occur in a vented headlight when temperature and humidity change. Persistent large droplets, trickling water or pooling are not normal signs and require inspection of the lens seal, rear covers, gaskets, cable entries, vents and drains.
If Something Does Not Look Right
| Observation | What to inspect | Recommended action |
|---|---|---|
| Lens will not separate | Hidden fasteners, sealant identification, temperature procedure | Stop. Do not add uncontrolled heat or force; confirm the construction with a specialist. |
| Heat-sink module will not sit flat | Cable position, sealing ring, connector clearance, trapped debris | Loosen it, reposition the flat cable and restart all screws by hand. Never pull it down unevenly. |
| DRL does not illuminate | Board orientation, connector seating, pin damage, polarity and compatible board version | Isolate power and correct the fault before resealing or driving the vehicle. |
| Fine mist appears temporarily | Whether it clears with normal operation and airflow; vents and caps | Monitor it. Temporary fine condensation alone does not prove a seal failure. |
| Large droplets, trickles or pooled water | Lens channel, rear covers, module seals, gland, cracks, vents and drains | Stop using the modified lamp if electronics are at risk and repair the entry path before further testing. |
| Beam or adaptive function is incorrect | Headlight seating, adjusters, stored faults, calibration requirements | Perform the exact OEM aiming or diagnostic calibration procedure. |
Frequently Asked Questions
Can every headlight be opened with heat?
No. Some assemblies use reheatable sealant, while others use a permanent adhesive or a construction that is not intended to be separated. Confirm the exact headlight and its service method before applying heat.
What temperature should I use?
There is no universally safe temperature. Use only a documented procedure for the exact assembly and a controlled heat source. If no reliable procedure is available, have a specialist identify and open the headlight.
Should I reuse the original sealant?
That depends on its condition and the headlight design. Contaminated, displaced, hardened or insufficient material should not be trusted. Use a compatible automotive headlight sealant and follow its preparation and application instructions.
Where should RGB+W wiring leave the housing?
Use the least invasive suitable route: beneath a compatible heat-sink sealing ring, through an existing service or dust-cap solution, or—only when necessary—through a new sealed pass-through fitted with a correctly sized waterproof automotive gland or grommet. Never block a vent or drain.
Does condensation always mean the reseal failed?
No. Vented headlights can develop temporary fine mist during temperature or humidity changes. Large droplets, running water, pooling or moisture that does not clear require a leak-path inspection.
Will the vehicle need coding or headlight calibration?
It depends on the vehicle and headlight system. Some conventional lamps need only an aim check, while adaptive or matrix systems may require a diagnostic calibration. Follow the OEM repair information for the exact vehicle.
Important: This is a general educational guide. Headlight construction, fasteners, electronics, sealing systems and legal requirements vary by vehicle and market. Opening or modifying a headlight can be irreversible, may affect warranty or road approval and can create electrical, visibility or moisture-ingress hazards if performed incorrectly. Always follow current vehicle-manufacturer repair information, the instructions supplied with the exact DRL boards and applicable local regulations. Professional installation is recommended.
