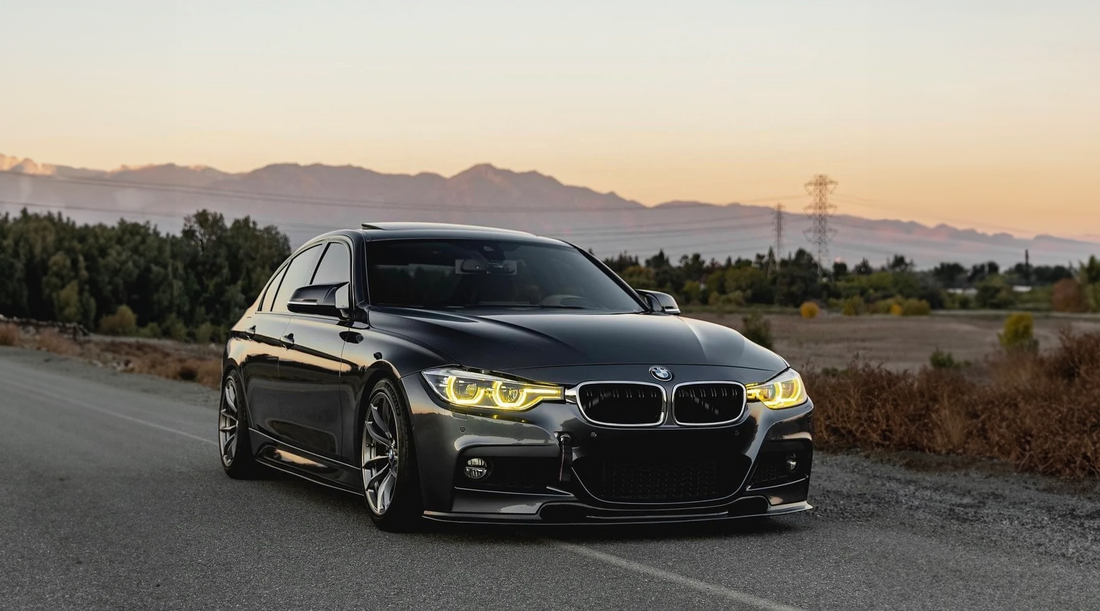

Installation Guide for LED DRL Boards on BMW 3 Series F30
Enhance your BMW 3 Series F30 with our custom made DRL boards. Follow this step-by-step guide to ensure a smooth and secure installation.
Note: Always consult your vehicle's manual or seek professional assistance if you are unsure about any step. Our DRL LED boards are designed to fit only original headlights and are not suitable for aftermarket headlights.
Installation Steps
Step 1: Prepare the Car
- Pop the hood and remove the liner using Torx bits (T30).
- Remove T20 Torx bolts from the sides of the bumper.
Step 2: Remove the Bumper
- Unscrew the bolts (T30) behind the wheel arch liners and any additional bolts holding the bumper in place.
- Disconnect side cameras if present.
Step 3: Remove the Headlights
- Remove the three mounting screws of the headlight (two on top and one approximately in the middle under the headlight).
- Disconnect the headlight electrical connector and carefully remove the headlight to access all DRL modules.
Step 4: Access the DRL Modules
- Locate the two DRL modules at the bottom of the headlights.
- Remove them without pulling out the headlights.
Step 5: Remove the Third DRL Module
- To access the third DRL module, it is recommended to remove the headlight for easier installation.
- Locate the third DRL module behind the headlight and remove it.
Step 6: Swap DRL Boards
- Unclip and replace the original boards (mounted on the heatsink/DRL module) with the new ones.
- Ensure proper alignment and connection.
- Note: The two modules at the bottom of the headlight use boards with two LED chips, while the third module behind the headlight uses a board with a single LED chip.
Step 7: Reinstall Modules
- Secure the new modules back into place, ensuring a snug fit to prevent movement.
Step 8: Test and Adjust
- Turn on the lights to verify the DRL function.
- Make any necessary adjustments for alignment or fitment.
Step 9: Repeat for Other Side
- Follow the same process for the other headlight assembly.
Step 10: Reassemble
- Carefully reattach the bumper, securing all bolts and ensuring proper alignment.
- The installation of single-color boards is complete.
Step 11: Installing The Bluetooth controller
- This step is only for the RGB+W variant! To properly control the light of the DRL boards, it is necessary to install the Bluetooth controller. Follow the included instructions and place the controller in the engine compartment, using either double-sided adhesive or zip ties to secure it to the underside of the core support.
Step 12: Testing
- For the RGB variant the app called "Colorful Lights" must also be downloaded (available for IOS and Android). Open the app and connect to the Bluetooth module. Now test different colors, brightness levels, and modes.
