Custom DRL upgrades explained
A Small Lighting Change With a Major Visual Impact
A vehicle's daytime running light signature is one of the first details people notice. Replacing the factory-white LED boards with a compatible single-color or RGB+W setup can give that familiar front end a completely different character—without replacing the complete headlight assembly.
- Single-color and RGB+W options
- Vehicle-specific fitment
- Installation method explained
- Road-use considerations included
The upgrade at a glance
Personalization Without Replacing the Entire Headlight
On a compatible headlight, the visible DRL shape is created by the factory light guides or optics. A replacement board changes the light source behind that signature, allowing the original design language to remain recognizable while the color changes.
Keep the factory signature
The existing rings, bars or angular light guides remain part of the headlight; the compatible LED boards produce the new color.
Choose a defined look
Select a fixed single color for a consistent appearance or RGB+W for adjustable show-lighting options.
Check more than the model
Model year, market, headlight technology and installed headlight option must match the product specification.
Color changes perception
Why Colored DRLs Transform a Car's Character
DRLs sit high on the front of the vehicle and outline a shape chosen deliberately by the manufacturer. Changing their color therefore affects more than one small detail—it changes how the complete front end is read.
Yellow produces a motorsport-influenced contrast that works especially well with dark trim, carbon components and saturated paint colors. Red creates a more aggressive show-car appearance, while blue delivers a cooler, technical look. The strongest result is not always the loudest color; it is the color that complements the vehicle's paint, wheel finish and overall build theme.
BMW itself has used yellow lighting to distinguish special M models. On the factory BMW M3 CS, the angular daytime-running-light elements illuminate yellow rather than white, a design choice BMW says evokes GT racing cars. That factory execution helped make the yellow-DRL look particularly desirable among owners of other G8x models.
A standard BMW M3 G80 fitted with aftermarket yellow boards is still a modified vehicle, not an M3 CS lighting system. The visual inspiration may be similar, but fitment, electronics and regulatory approval remain specific to the installed headlight and jurisdiction.
Behind the light signature
What a DRL Board Upgrade Actually Changes
The LED source changes
In many modern headlights, one or more LED boards are mounted to metal heat-sink modules. Their light is directed through factory optics or light guides to form the signature visible from outside. A compatible upgrade replaces those LED boards while reusing the relevant factory housing, heat sink and optical components.
This is different from fitting an overlay, colored film or universal LED strip. The board must match the electrical layout, mounting points, thermal interface and optical position of the particular headlight application.
The headlight remains a system
The final result depends on more than the board alone. Light guides, lenses, driver electronics, thermal contact, wiring and vehicle control modules all influence brightness, uniformity and fault-free operation. A compatible listing reduces uncertainty, but it does not remove the need for careful installation and testing.
Color can also appear different through the headlight optics than it does on an exposed LED. Product images should therefore be treated as representative; camera exposure, ambient light and screen calibration can affect the appearance.
Choose your setup
Single-Color or RGB+W DRL Boards?
Both options can transform compatible factory DRLs, but they are designed for different priorities. Product-specific specifications always take precedence over general comparisons.
Single-color DRL boards
A single-color board produces one fixed color whenever the supported DRL function is active. Depending on the application, choices may include yellow, red, blue, amber, green or purple.
- One consistent color
- No app or Bluetooth color controller required
- No additional wiring required
- Suited to a clearly defined build theme
RGB+W DRL boards
RGB+W boards combine adjustable red, green and blue channels with separate white LEDs. Supported controller versions allow color and brightness adjustment through a compatible app; available effects depend on the supplied controller.
- Adjustable color selection
- Dedicated white channel
- Additional controller, power, ground and board wiring
- Suited to show builds and changing display themes
| Feature | Single-color | RGB+W |
|---|---|---|
| Color output | One fixed color | Adjustable RGB colors plus a dedicated white channel |
| External controller | Not required | Required |
| Additional wiring | Not required | Controller power, ground and connections to both headlights |
| Best suited to | A permanent, consistent color theme | Flexible show and display configurations |
| Road legality | Depends on color, headlight approval, installation and local law; product availability is not evidence of road approval | |
Compatibility comes first
How to Select the Correct DRL Boards
Two vehicles with the same badge can use different headlight assemblies. Never order from the vehicle name alone when the product page asks for additional headlight information.
Verify the vehicle
- Exact manufacturer and model
- Production year or model-year range
- Body style and relevant facelift generation
- Left-hand-drive or right-hand-drive market if specified
Verify the headlights
- LED, xenon, laser or other listed technology
- Adaptive or non-adaptive version where relevant
- Clear reference photos if requested
- Shape and connector arrangement of the original modules
Installation is vehicle dependent
The Two Main DRL Board Installation Routes
Installation difficulty is determined primarily by the headlight construction. Some boards sit on externally accessible heat-sink modules; others are located inside a permanently sealed assembly.
Externally accessible module
The heat-sink module can be removed from the rear or underside of the headlight. Depending on the vehicle, access may still require removal of a wheel-arch liner, bumper component or the complete headlight.
- Disconnect power according to the vehicle procedure.
- Gain safe access to the correct module.
- Disconnect and remove the module without damaging its seal.
- Replace the board and renew the specified thermal-interface material.
- Reinstall, test all functions and check for faults.
Headlight opening required
If the boards or LED strips are inside the sealed headlight, the lens must be separated from the housing. Sealant type, plastic construction and safe working method vary; one universal heating temperature must not be applied to every headlight.
- Remove and inspect the complete headlight.
- Identify the sealant and select the appropriate opening method.
- Separate the lens gradually without deforming the housing.
- Install and test the boards before final closure.
- Reseal the assembly and perform a careful leak inspection.
Additional work required for RGB+W
RGB+W installation also requires mounting the Bluetooth controller in a secure, dry and serviceable location, connecting the specified power and ground supplies, and routing board cables from both headlights to the controller. Wiring must be protected from exhaust and engine heat, sharp edges, abrasion and moving components.
Use an existing service opening or suitable dust-cap route only when it can preserve the headlight's sealing and does not interfere with internal movement or cooling. If no suitable route exists, a correctly sized pass-through may be required. Any drilled opening must be deburred and sealed with an appropriate waterproof automotive cable gland or grommet. Never leave an unsealed hole or force a cable across a sealing surface without confirming the application-specific routing method.
Important before public-road use
Colored DRLs and Road Legality
Lighting law is determined by the jurisdiction where the vehicle is operated. The permitted color is only one part of the assessment; lamp approval, intensity, switching behavior, installation and interaction with required lighting can also matter.
UN/EU-type-approval markets
Under widely applied UN lighting rules, the approved daytime-running-lamp function is generally specified as white. A factory-approved special-model configuration does not automatically authorize the same color after modifying a different headlight assembly.
United States
Federal lighting requirements and the prohibition against making required safety equipment inoperative can apply alongside state laws. Restrictions on forward-facing red, blue and flashing lighting are commonly strict and vary by state.
Canada
Canadian federal standards permit specified white-to-yellow color ranges for compliant DRLs, but the complete installation must still satisfy applicable federal and provincial requirements. Other colors are not made legal by the DRL label alone.
- Check national, state or provincial rules before installation and use
- Ask the relevant inspection or registration authority when approval is unclear
- Do not use flashing effects on public roads unless explicitly permitted
- Do not assume a factory special model creates approval for an aftermarket conversion
Protect the installation
Care, Thermal Management and Reliability
DRL boards operate in a demanding environment. Heat, vibration, moisture and incorrect electrical connections can damage even a compatible component if the installation is incomplete.
During installation
- Disconnect and reconnect the vehicle electrical system according to manufacturer procedures
- Handle boards and optical components with clean, dry gloves
- Remove old thermal adhesive where instructed and clean the mounting surface
- Use the specified thermal paste, pad or adhesive in the correct amount
- Tighten fasteners evenly without damaging plastic threads or distorting the module
After installation
- Test DRL, position-light, indicator and headlight functions before final reassembly
- Check both sides for consistent output and stable operation
- Secure all wiring away from heat, sharp edges and moving parts
- Inspect the headlight for condensation or moisture after the first weather exposure
- Investigate flickering, warnings or abnormal heat instead of continuing operation
If a DRL becomes dim, discolored or intermittent, do not assume the replacement board is the only possible cause. Driver electronics, connectors, thermal contact, vehicle coding, moisture and damaged light guides can produce similar symptoms. Proper diagnosis is more reliable than replacing parts at random.
Build a coherent look
Let the DRL Color Support the Whole Vehicle
The most convincing upgrades feel intentional. Consider the body color, dark or bright exterior trim, wheel finish and the visual temperature of the remaining lights before choosing a DRL color.

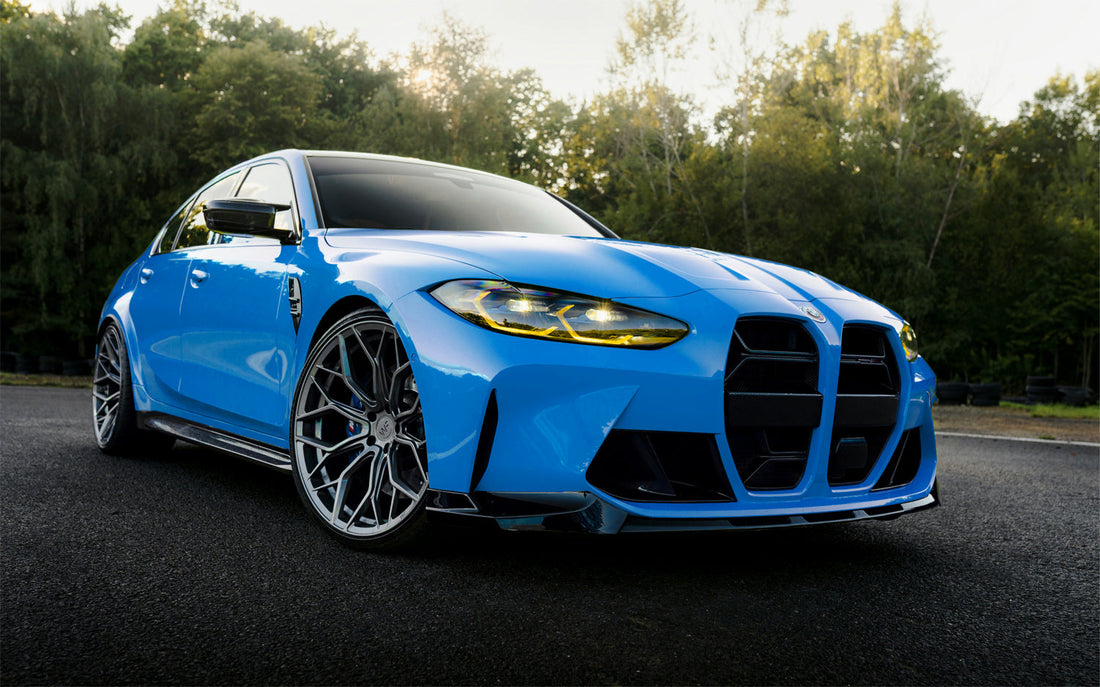

Yellow works as a high-contrast accent on the blue BMW M3 G80 shown here, while the black grille and trim prevent the front end from becoming visually overloaded. On another build, a restrained color may be more effective. The goal is not simply to make the DRLs brighter or louder—it is to make the vehicle feel more complete and personal.
Frequently asked questions
Custom DRL Board FAQ
Do custom DRL boards replace the complete headlight?
No. On supported applications, the LED boards are replaced while relevant factory components such as the housing, light guides, lenses and heat-sink modules are retained.
Are yellow DRLs legal on public roads?
That depends on the country, state or province, the approved headlight configuration and the installation. Yellow may be permitted in some jurisdictions and prohibited or approval-sensitive in others. A factory BMW special-model application does not automatically legalize an aftermarket conversion.
Does the white RGB+W mode make the conversion road legal?
Not automatically. White output is only one requirement. Type approval, photometric performance, wiring, switching behavior and local modification rules may also apply to the complete headlight.
Will RGB+W boards work without additional wiring?
No. RGB+W systems require a compatible controller, power and ground connections, and wiring between the controller and the boards in both headlights. Exact requirements depend on the kit.
Can I install DRL boards myself?
Some externally accessible modules may be suitable for an experienced DIY installer with the correct tools. Headlight opening, electrical modification and sealed cable pass-throughs are better assigned to a qualified professional when experience is limited.
How do I confirm the correct board for my vehicle?
Match the product listing to the exact model, year, market and headlight option. Where requested, compare the original module or headlight part number and provide clear reference photos before ordering.
Will the car display a lighting fault after installation?
A dashboard-warning-free result should not be promised universally. Correctly matched boards are designed for the listed application, but vehicle software, wiring condition, installation quality and headlight electronics can affect fault monitoring.
Ready to plan your upgrade?
Find the DRL Boards Designed for Your Headlights
Browse the available vehicle applications, compare single-color and RGB+W options, and verify the exact headlight configuration shown on the product page before ordering.
Official references
Legal and Technical Sources
- BMW Group PressClub: BMW M3 CS yellow daytime running light elements
- UNECE Regulation No. 148: light-signalling devices
- UNECE Regulation No. 48: installation of lighting and light-signalling devices
- NHTSA: aftermarket lighting and the “make inoperative” provision
- Transport Canada: Technical Standards Document No. 108
This article provides general product, installation and regulatory information and is not legal advice. Lighting requirements and vehicle-modification rules can change and may differ between jurisdictions. Confirm the rules applicable to the exact vehicle and place of use.
