BMW DRL upgrade guide
Yellow, Single-Color and RGB+W DRL Boards for BMW Models
Looking for yellow DRLs or app-controlled RGB+W lighting for a BMW F30, F82, G80/G82, M5, M8 or another supported model? This guide explains the available board types, vehicle fitment and installation routes so you can choose the correct upgrade for your exact headlights.
- 27 BMW model applications
- Yellow and single-color options
- RGB+W app control
Start with the hardware
What Does a BMW DRL Board Upgrade Actually Change?
On many supported BMW headlights, LED circuit boards illuminate the familiar daytime-running-light signature through factory light guides. A compatible replacement board changes the color produced behind that signature while retaining the original headlight housing and optical shape.
This is different from installing a universal LED strip or replacing the complete headlight. The board must match the precise heat sink, connector, headlight version and light-guide arrangement used by the vehicle. Even within one BMW chassis code, pre-LCI and LCI headlights or regional specifications can require different configurations.
- Retains the supported factory headlight housing and DRL signature
- Offers fixed yellow, red, blue or other colors where listed
- Adds app-controlled colors with an RGB+W kit where available
- Requires exact vehicle and headlight identification before ordering
Motorsport-inspired styling
Why Are Yellow DRLs Popular on BMW Models?
Yellow BMW DRLs became closely associated with modern M-car styling and GT-racing references. The factory executions are model-specific, however, so they should be treated as design inspiration—not as proof that an aftermarket conversion duplicates the original function or approval.
BMW M4 CSL inspiration
BMW describes the M4 CSL's angular daytime-running-light elements as illuminating in yellow rather than white during the welcome effect and when the low or high beam is switched on. The company explicitly connects the appearance with successful GT racing cars.

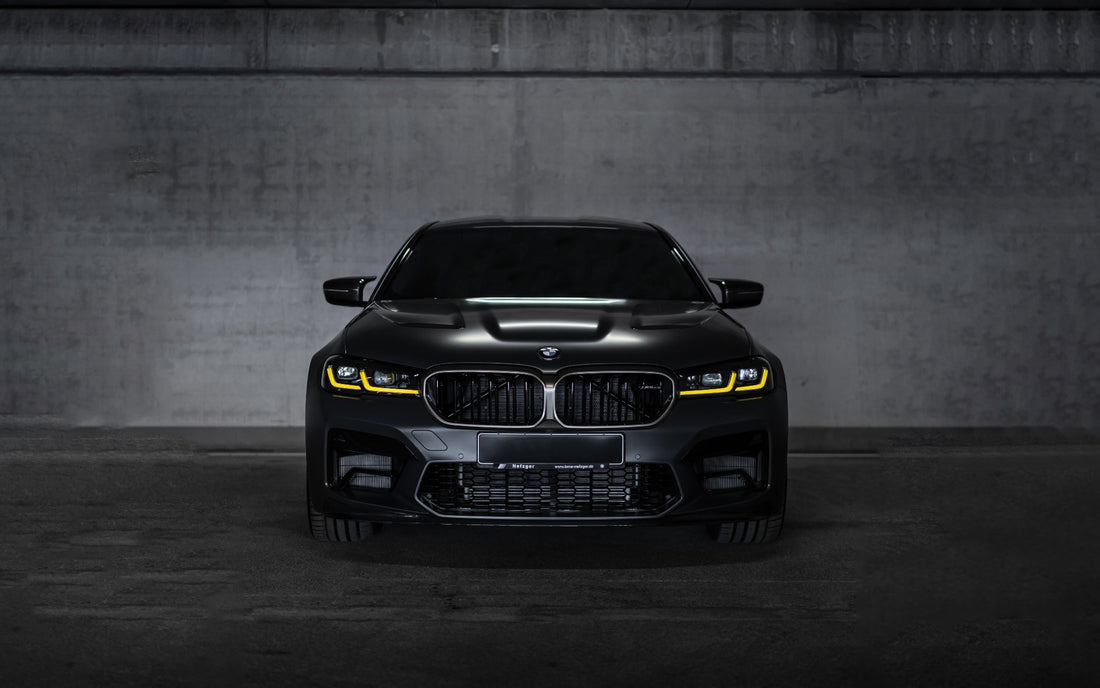

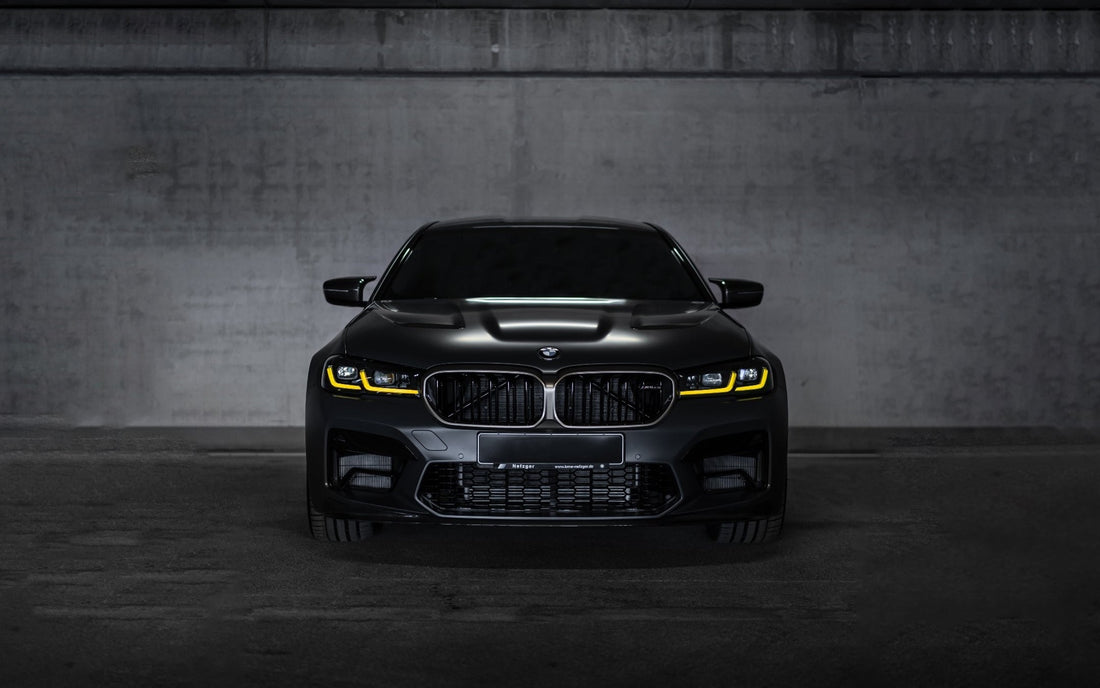

BMW M5 CS: an important distinction
The M5 CS does not use yellow in every operating state. BMW states that its L-shaped light tubes remain white as daytime driving lights and side lights, then switch to yellow with the welcome function or activated low/high beam.
A fixed-yellow replacement board generally illuminates yellow whenever the supported board circuit is active. It does not automatically reproduce the M4 CSL or M5 CS control logic. RGB+W systems can provide selectable yellow and white settings, but their operation is determined by the supplied controller rather than factory BMW software.
Choose your configuration
BMW Single-Color DRL Boards or RGB+W DRL Boards?
The correct option depends on whether you want one permanent color or adjustable app-controlled lighting. Product availability and included components vary between BMW models.
A Fixed Color Without App Control
Single-color boards produce one defined color whenever the corresponding DRL circuit is active. Yellow is the most recognizable BMW option, while red, blue, amber, green or purple may be available for selected products.
- No Bluetooth color controller required
- One consistent color rather than selectable effects
- Vehicle- and headlight-specific board layout
- Often the simpler electrical configuration
Adjustable RGB Colors Plus Dedicated White LEDs
RGB+W boards combine red, green and blue channels with a separate white channel. On supported kits, the compatible Bluetooth controller and smartphone app can select colors, adjust brightness and access the controller's available lighting modes.
- Selectable colors rather than one permanent output
- Dedicated white channel instead of mixed RGB white
- Bluetooth controller and app required
- Additional power, ground and board wiring required
Controller functions differ by kit. RGB+W operation should not be described as factory iDrive control, and a selected white setting does not by itself establish road approval for the modified headlight.
| Feature | Single-color | RGB+W |
|---|---|---|
| Color output | One fixed color | Selectable RGB colors plus dedicated white |
| App and controller | Not required | Required |
| Additional wiring | Not required | Controller, power, ground and board connections |
| Best suited to | A consistent yellow or other listed color | Show builds and adjustable color preferences |
| Fitment requirement | Exact BMW chassis, year and headlight version must match the product | |
Understand the alternatives
DRL Board Upgrade vs. Complete Headlights and Angel-Eye Kits
A replacement-board upgrade is intended to work with the supported factory housing, heat sinks and light guides. A complete modified headlight replaces or professionally rebuilds a larger assembly, while universal halo or angel-eye kits can introduce a different illuminated shape.
None of these approaches is universally “better.” Board replacement can preserve the recognizable factory signature and avoid purchasing complete headlights, but it still requires correct thermal mounting and may require headlight removal or opening. A pre-built headlight can reduce installation work on the vehicle but may cost more and introduces its own fitment, beam-pattern and approval questions.
Replacement DRL boards
Retain the supported factory light signature while changing the LED color source.
Complete modified headlights
Replace or rebuild a larger assembly and potentially change several lighting elements.
Halo or angel-eye kits
Add separate illuminated elements and may require substantial internal headlight work.
Frequently searched BMW platforms
Popular BMW Yellow and RGB+W DRL Applications
These are some of the most frequently requested BMW families. The chassis codes below help identify the model generation, but the headlight still needs to match the selected product.
BMW F30 Yellow or RGB+W DRLs
For the BMW 3 Series F30 generation, verify the production year and exact headlight module before selecting a fixed-yellow or RGB+W configuration.
View BMW 3 Series F30 DRL boardsBMW F80/F82/F83 M3 and M4 DRLs
F8X headlights differ by year and version. Confirm whether the listed standard or LCI board layout matches your M3, M4 or corresponding 4 Series headlight.
View BMW F80/F82/F83 DRL boardsBMW G80/G82 M3 and M4 DRLs
Yellow DRL boards provide a fixed motorsport-inspired color, while an available RGB+W version adds controller-based color selection for supported G80 and G82 headlights.
View BMW G80/G82 DRL boardsBMW G30/F90 M5 DRLs
The BMW 5 Series G30 and M5 F90 use application-specific modules. Select the exact headlight configuration rather than ordering solely by the M5 badge.
View BMW G30 and M5 F90 DRL boardsBMW 8 Series and M8 DRLs
Colored and RGB+W board availability for the BMW 8 Series and M8 depends on the exact model year and installed headlight assembly.
View BMW 8 Series and M8 DRL boardsBMW X5/X6 and X5M DRLs
BMW X-platform headlights can vary significantly across generations and facelifts. Match the G05, G06, F95 or F96 designation and headlight version carefully.
View BMW X5/X6 LCI DRL boardsBMW vehicle finder
Find DRL Boards for Your BMW Model
Select BMW and then your model family to open the corresponding product page. Confirm the exact vehicle year, facelift status and headlight before ordering.
All Linked BMW DRL Board Applications
These crawlable links make every BMW product page accessible even without using the interactive selector.
BMW 1 Series, 2 Series and M2
BMW 3 Series, 4 Series, M3 and M4
BMW 5 Series, 6 Series, 7 Series, 8 Series, M5, M6 and M8
BMW X models, Z4 and i8
Installation planning
How Are BMW DRL Boards Installed?
The required work is determined by the specific headlight construction. Some BMW LED modules are accessible from the outside; other boards sit inside a sealed housing. Product instructions and the physical headlight must take precedence over a general article.
Externally accessible modules
On some BMW headlights, the heat-sink modules can be removed from the rear or underside without separating the lens. Wheel-liner, bumper or headlight removal may still be necessary. Factory boards may be fastened with screws, thermal adhesive, or both.
Read the general DRL board installation guideBoards inside the headlight
Other designs require lens separation and resealing. BMW headlights can use different sealants and temperature-sensitive plastics; no single oven temperature or opening technique is universally safe. Professional installation is strongly recommended.
Read the headlight-opening guideRGB+W controller and cable routing
RGB+W installation adds connections from the DRL boards to the Bluetooth controller, along with the controller's specified power and ground wiring. Mount the controller securely in a dry, serviceable location and protect every cable from heat, sharp edges and moving components.
Depending on the BMW headlight and kit design, a flat board cable may be routed alongside an external heat-sink module and beneath its sealing ring, through a suitable rear service or dust-cap access, or through another safe existing route. Reinstall the module evenly and tighten screws with care; never force the heat sink into place or crush the cable.
If no suitable route exists, a small pass-through hole may be required. Use a correctly sized waterproof rubber cable gland, seal it with an automotive-compatible material and verify that the housing remains watertight.
Before ordering
BMW DRL Compatibility Checklist
Identify the BMW
- Model and chassis code
- Production month and year
- Pre-LCI or LCI version
- Regional vehicle specification
Identify the headlight
- LED, adaptive LED, xenon or Laserlight
- Headlight part number
- Module and connector layout
- Original board shape and quantity
Confirm the kit
- Fixed color or RGB+W
- Boards only or pre-mounted modules
- Controller and wiring contents
- Required installation method
BMW DRL questions
BMW Yellow and RGB+W DRL Upgrade FAQ
Can I install yellow DRLs on a BMW F30?
Yellow replacement boards are available for supported BMW 3 Series F30 headlights. Compatibility depends on the production year and exact headlight/module version, so compare the installed parts with the F30 product page before ordering.
Are RGB+W DRL boards available for the BMW F82 M4?
RGB+W configurations are offered for supported F80/F82/F83 applications. The F8X family uses different headlight versions across production years, so confirm whether the selected standard or LCI product matches the vehicle.
What DRL upgrade fits a BMW G80 M3 or G82 M4?
Use the product listed specifically for BMW M3 G80 and M4 G82 models, then confirm the year and installed headlight. Do not substitute an F8X or later LCI board simply because the visible light signature appears similar.
Can I get yellow or RGB DRLs for a BMW M5 or M8?
Supported products are linked for the BMW 5 Series G30/M5 F90, newer 5 Series G60/G61/M5 G90, and 8 Series/M8. Available colors and RGB+W configurations must be confirmed on each product page.
Do yellow BMW DRL boards copy the M4 CSL factory system?
They provide a similar motorsport-inspired yellow appearance on compatible headlights, but do not convert the headlight into an original M4 CSL unit or guarantee identical control logic, light output, approval or optical performance.
What is the difference between BMW RGB and RGB+W DRLs?
RGB creates colors through red, green and blue LEDs and mixes those channels to approximate white. RGB+W adds dedicated white LEDs. The kits covered in this article use RGB+W boards with their compatible controller.
Can RGB+W DRLs be controlled through BMW iDrive?
Not unless a specific product explicitly states that capability. The RGB+W kits described here use their compatible Bluetooth controller and smartphone app rather than factory BMW iDrive.
Will a BMW DRL board upgrade require coding?
Requirements depend on the vehicle, headlight electronics and selected product. Do not assume coding is never needed or that a dashboard message is impossible. Test every light function and scan for faults before completing the installation.
Are yellow, red, blue or RGB BMW DRLs road legal?
Rules vary by jurisdiction and may reserve certain colors for specific vehicle functions or emergency services. UNECE approval requirements specify white for daytime running lamps. Treat colored settings as show, exhibition or off-road configurations unless the complete installation is permitted where the vehicle is used.
Can I return my BMW headlights to the factory DRL setup?
Reinstalling retained factory boards may be possible on some externally accessible modules. The work is not always completely reversible: thermal adhesive removal, wiring changes, cable-gland holes or headlight opening can leave permanent modifications.
Find the Correct DRL Boards for Your BMW
Start with the chassis and production year, then verify the exact headlight and available color configuration on the product page.
DRLS Direct replacement boards are aftermarket lighting components and are not represented as original BMW parts, M4 CSL conversions or universally road-legal modifications. BMW model names and chassis codes are used only to identify intended compatibility. Product specifications, availability and installation requirements can change; the individual product page and supplied instructions take precedence over this general guide.
